Technical Specifications
Description 3-way vented-box system
Decoupled Carbon Dome™ tweeter
Continuum™ cone FST™ midrange, Decoupled midrange
Aerofoil™ Profile bass cones, Flowport™
Drive units 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø100mm (4 in) Continuum cone, FST midrange
2x ø165mm (6.5 in) Aerofoil Profile bass
Frequency range (-6dB) -6dB at 45Hz and 33kHz
Frequency Response -3dB 50Hz - 28kHz ±3dB
Sensitivity 89dB spl (2.83VRMS, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 22kHz <0.5% 120Hz - 20kHz
Nominal impedance 8Ω (minimum 3Ω)
Recommended amplifier 30W - 200W into 8Ω on unclipped power programme
Height: 225mm (8.6 in)
Width: 590mm (23.2 in)
Depth: 285mm (11.2 in) cabinet only 301mm (11.9 in) including grille and terminals
Net weight 18.3kg (39.7 lb)

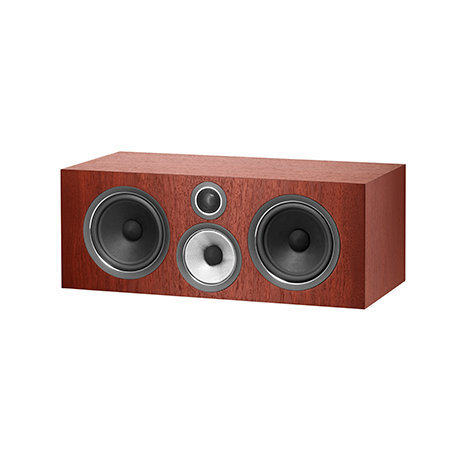

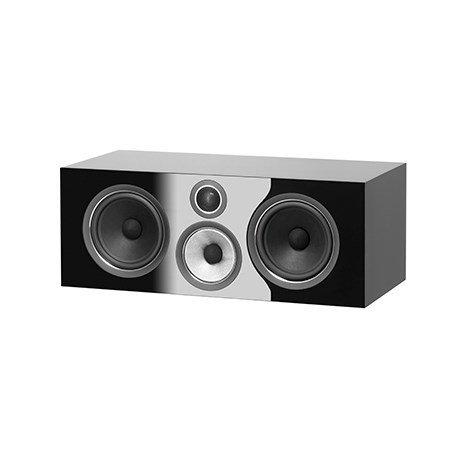

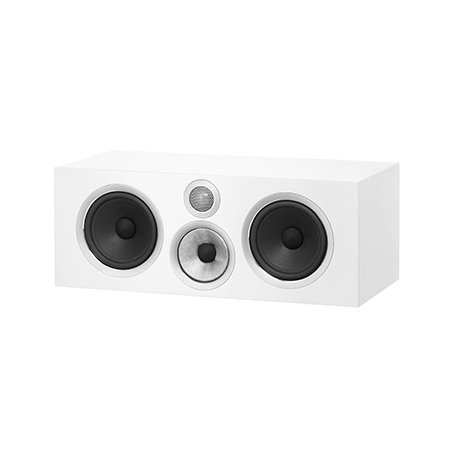

Saatavissa seuraavilla väreillä: musta, valkoinen ja ruusupuu (ruusupuussa aito puuviilu)
Etuverkkojen värit: valkoisessa vaalean harmaa, muissa väreissä musta
