Specification:
RMS power:
- Channel A - F @ 4 Ohms: 120 Watts per channel (≤ 1% THD+N)
- Channel C - F @ 2 Ohms: 230 Watts per channel (≤ 1% THD+N)

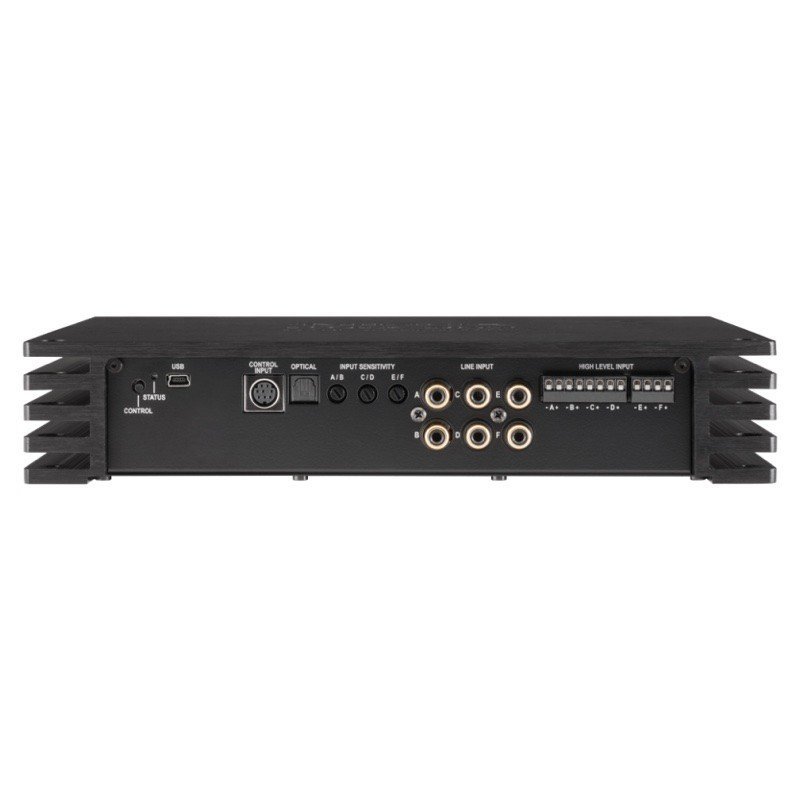

Inputs: 6 x RCA / Cinch
6 x Highlevel speaker input
1 x Optical SPDIF (12 - 96 kHz)
1 x Remote In
Input sensitivity: RCA / Cinch 2 - 4 Volts or 4 - 8 Volts
Highlevel 5 - 10 Volts or 10 - 20 Volts

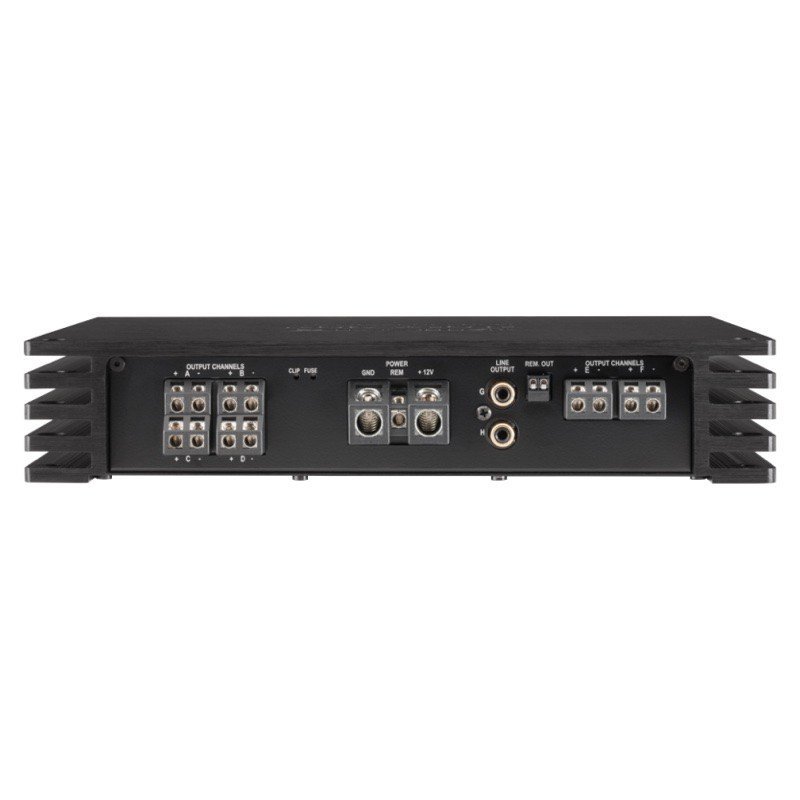

Outputs: 6 x Speaker
2 x RCA / Cinch
2 x Remote Out
Output voltage RCA: 3 Volts RMS
Frequency response: 20 Hz - 44,000 Hz
DSP resolution: 64 Bit
DSP power: 295 MHz (1.2 billion MAC operations per second)
Sampling rate: 96 kHz
Signal converters: A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio (A-weighted): 105 dB (digital input)
100 dB (analog input)
Distortion (THD): 0.008 %
Damping factor: 100
Input impedance RCA / Cinch: 64 kOhms
Input impedance highlevel: 13 Ohms or 64 kOhms
Operating voltage: 10.5 - 32 Volts (max. 5 sec. down to 6 Volts)
Additional features: Control Input, USB, HEC slot
Dimensions (H x W x D): 50 x 250 x 190 mm / 1.97 x 9.84 x 7.48”
