Model
DB1D Description
DB Series Subwoofer Technical features
2000w Class D Hypex amplifier
2 x 300mm (12in) Aerofoil-cone drive units in a balanced configuration
Digital preamplifier with Dynamic EQ
App-based set-up and BT-LE control Drive units
2 x 300mm (12in) Aerofoil-cone drive
units in a balanced configuration Frequency range (-6dB)
8.5Hz - 500Hz
Frequency Response -3dB (centred on level at 100Hz)
10Hz - 350Hz Max power output
2000W Inputs
2 x XLR
2 x RCA
2 x 3.5mm 12V trigger
RS-232 – 9-pin D connector Dimensions
Height: 460mm (18.1in)
Width: 429mm (16.9in)
Depth: 410mm (16.1in) Net weight
43kg Cabinet Finish (Grille Finish)

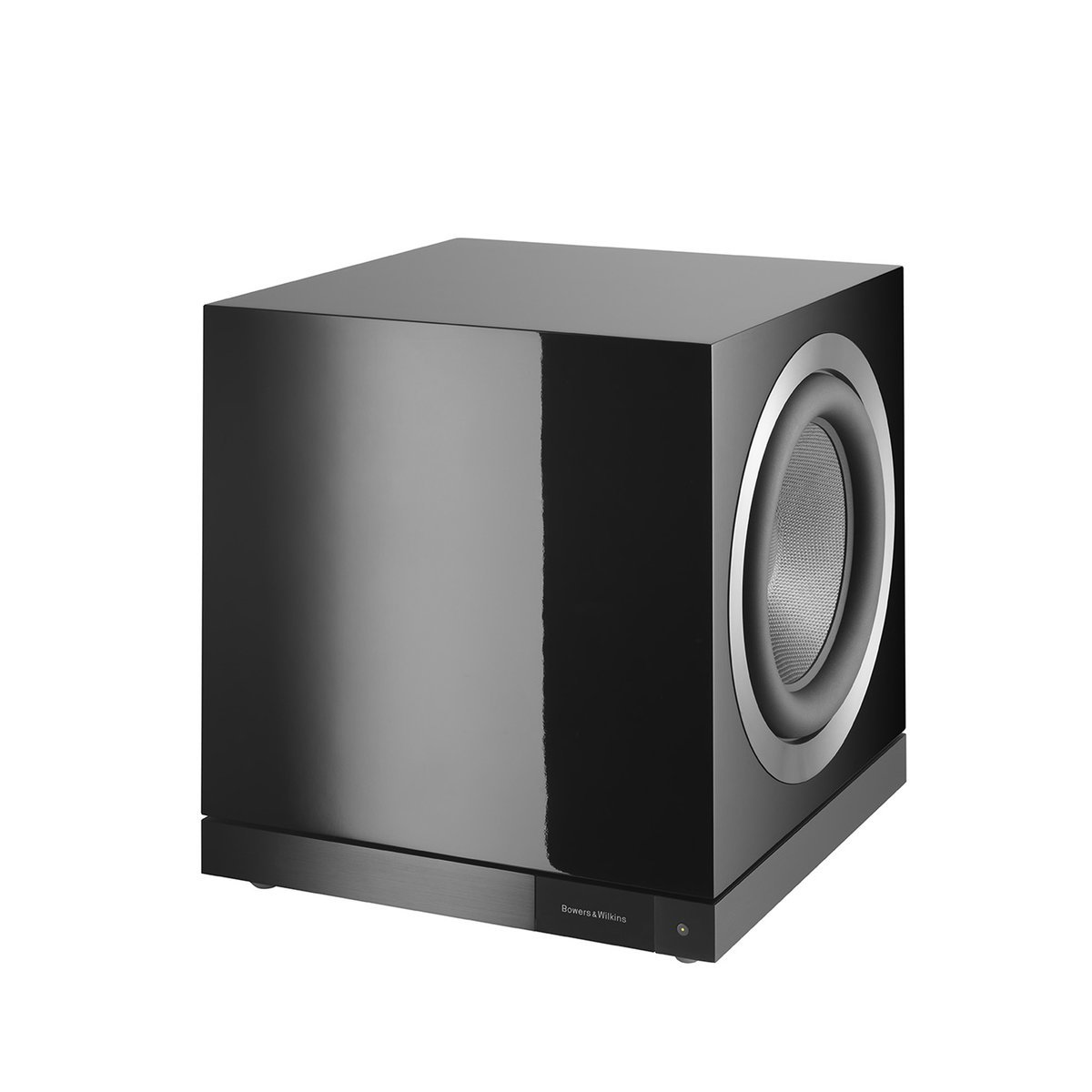

Gloss Black (with black grilles)

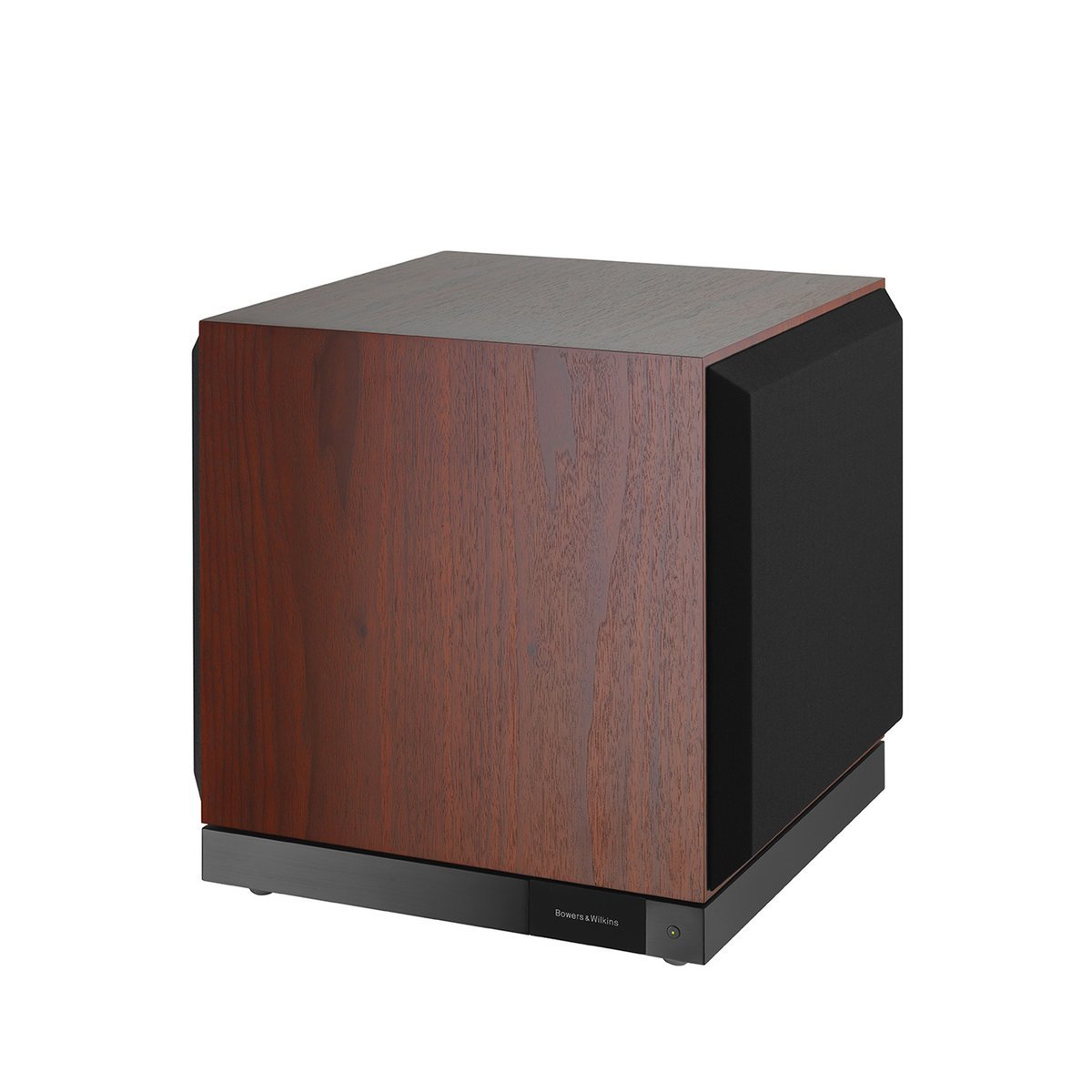

Rosenut (with black grilles)

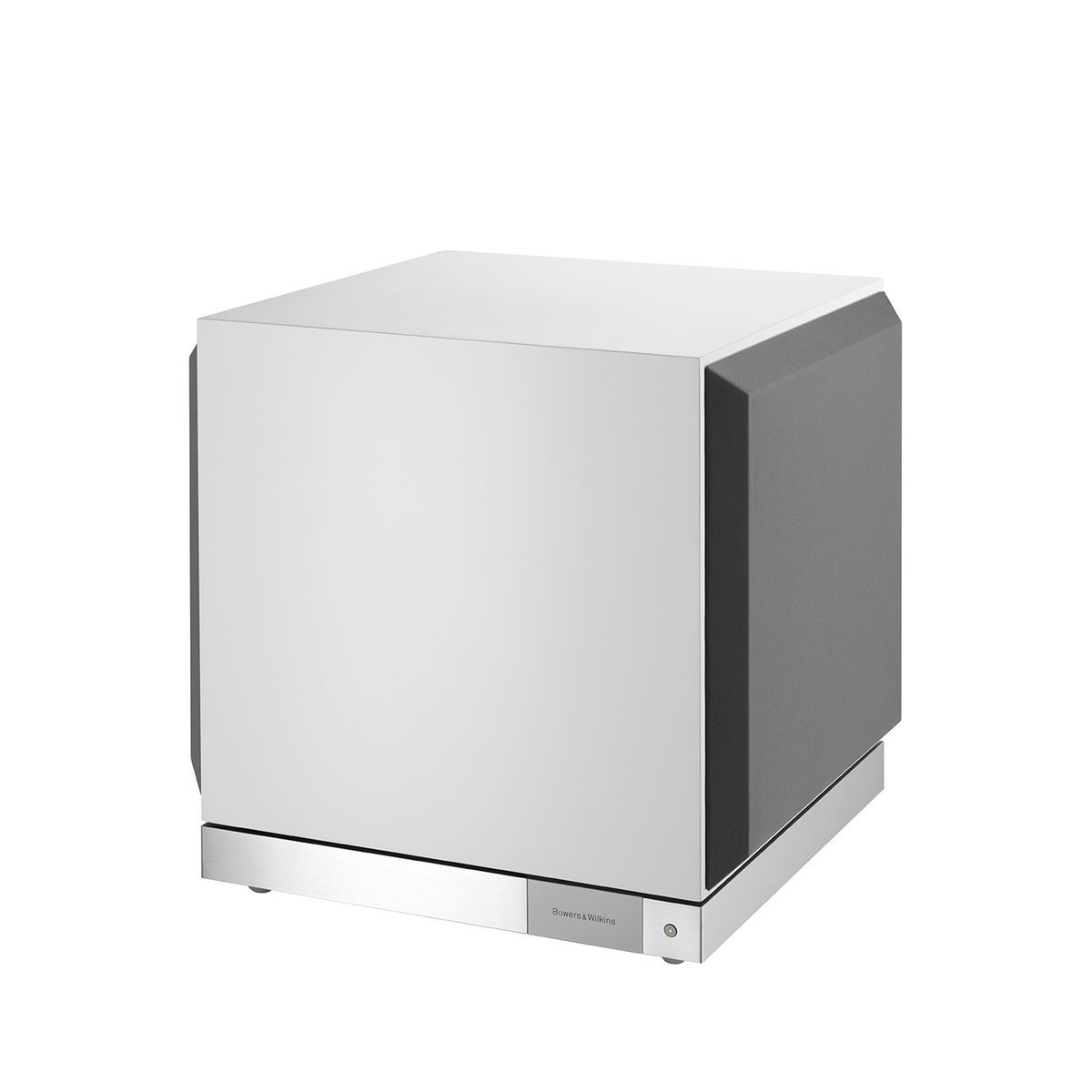

Satin White (with grey grilles)
